Product Description

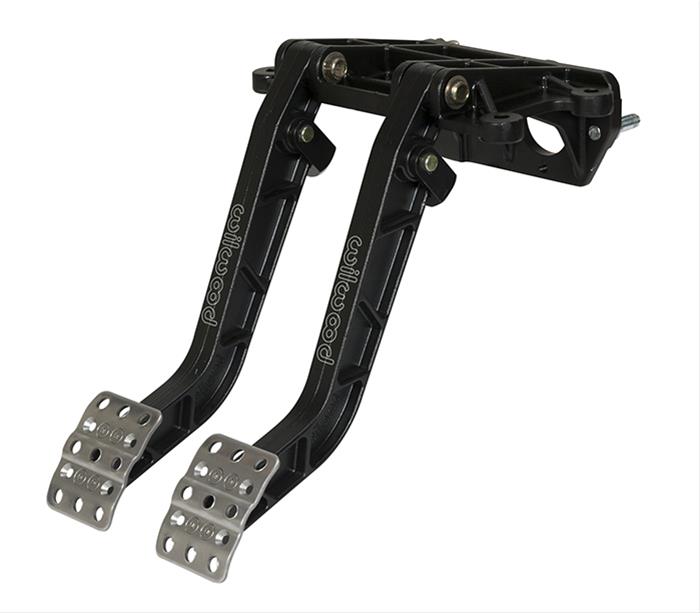

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders.
Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders. |
|---|---|
| product_ |
PEDAL ASSEMBLY,FORWARD MT,6.25:1,TANDEM |
| product_ |
PEDAL ASSEMBLY,FORWARD MT,6.25:1,TANDEM MASTER/CLUTCH |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Brake/Clutch Pedal Assemblies 340-14360 |
| brand | Wilwood Disc Brakes |
| price | 224.52 |
| blurb | Pedal Assembly, Brake/Clutch, Forward Mount, Aluminum, Black, Rectangle, 6.25:1 Ratio, Each |
| title | Wilwood Brake/Clutch Pedal Assemblies |
| description | Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles. |
item_row
| handle | WIL-340-14360 |
|---|---|
| item_ |
146206 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ab4c1ccbcca2b814bdc773d2a286b9bc.JPG |
| item_ |
340-14360 |
| item_ |
Wilwood Adjustable-Tandem Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 6.25:1 - Black E-Coat |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545072389 |
| item_ |
224.52 |
| item_ |
242.48 |
| t14_ |
1 |
| mfr_ |
23 |
| dim_ |
4.80 |
| dim_ |
14.80 |
| dim_ |
9.00 |
| dim_ |
5.60 |
| shipping_ |
14.52 |
| item_ |
wil340-14360 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Accepts single brake master cylinder with either 3.25 in. horizontal spacing or 2.5 in. vertical spacing and clutch master cylinder with 2.5 in. vertical spacing. |
| Quantity | Sold individually. |
| Part Type | Pedal Assemblies |
| Pedal Type | Brake/Clutch |
| Pedal Color | Black |
| Pedal Ratio | 6.25:1 |
| Product Line | Wilwood Brake/Clutch Pedal Assemblies |
| Pedal Material | Aluminum |
| Pedal Pad Color | Natural |
| Brake Pedal Shape | Rectangle |
| Clutch Pedal Shape | Rectangle |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Aluminum |
| Balance Bar Included | No |
| Pedal Pad Attachment | Bolt-on |
| Brake Booster Included | No |
| Pedal Mounting Location | Forward mount |
| Throttle Cable Included | No |
| Brake Pedal Length (in.) | 12.05 in. |
| Master Cylinder Included | No |
| Clutch Pedal Length (in.) | 12.05 in. |
| Manufacturer's Part Number | 340-14360 |
