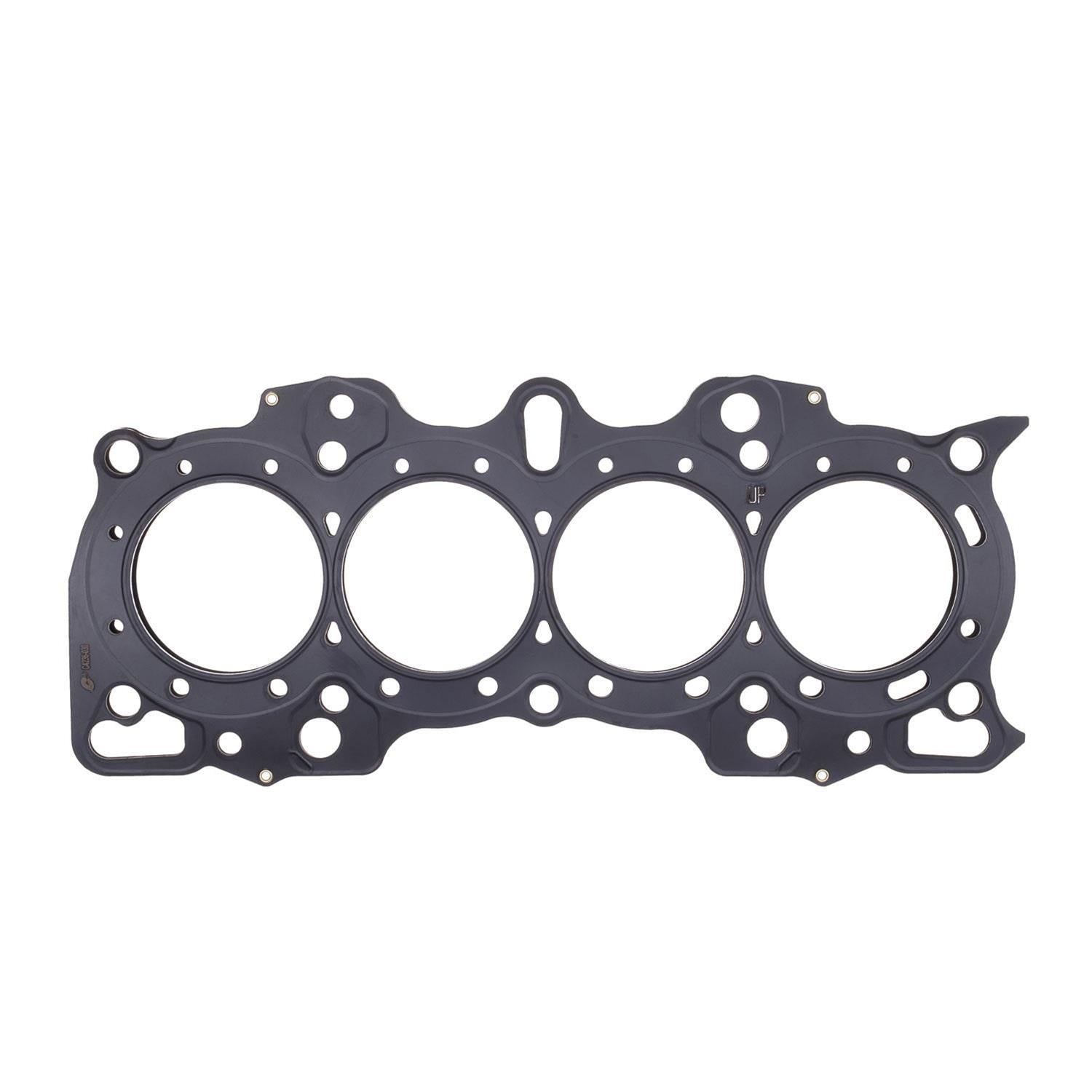

Cometic MLS Head Gaskets C4236-040
Cometic MLS Head Gaskets C4236-040
4 in stock
Couldn't load pickup availability
Tags
Product Description
COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
Extended Description
- Honda B-Series Hybrid .040" MLS Cylinder Head Gasket
- Non-VTEC Block
- VTEC Head
- 81.5mm Bore
Application Summary
Honda B-Series Hybrid
Fitment
Fitment
Part Type
Engine Cylinder Head Gasket
description
| aaia_ |
Engine Cylinder Head Gasket |
|---|---|
| application_ |
Honda B-Series Hybrid |
| market_ |
COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today''s high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. |
| product_ |
Honda B-Series Hybrid .040" MLS Cylinder Head Gasket; Non-VTEC Block; VTEC Head; 81.5mm Bore |
| product_ |
Hond B Series Hybrid Head Gasket |
| product_ |
.040" MLS Cylinder Head Gasket, 81.5mm Gasket Bore.Each |
| product_ |
Cylinder Head Gasket |
s_item
| department | Gaskets & Seals |
|---|---|
| section | Engine Gaskets & Seals |
| name | Cometic MLS Head Gaskets C4236-040 |
| brand | Cometic |
| price | 91.92 |
| blurb | '90+ B18 W/ VTEC HEAD .040"MLS |
| title | Cometic MLS Head Gaskets |
| description | Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required. |
item_row
| handle | CGS-C4236-040 |
|---|---|
| item_ |
3094 |
| brand_ |
14 |
| brand_ |
Cometic Gasket |
| item_ |
https://d5otzd52uv6zz.cloudfront.net/92cdabd1-230d-45fd-9b9e-84543a5c2ca5-100.jpg |
| item_ |
C4236-040 |
| item_ |
Cometic Honda Hybrid LS/VTEC 81.5mm 90+ B18 w/ VTEC Head .040 inch MLS Head Gasket |
| item_ |
Engine Components |
| item_ |
Head Gaskets |
| item_ |
191070033521 |
| item_ |
91.92 |
| item_ |
102.13 |
| t14_ |
7 |
| mfr_ |
|
| dim_ |
0.80 |
| dim_ |
17.50 |
| dim_ |
8.00 |
| dim_ |
0.11 |
| shipping_ |
14.52 |
| item_ |
cgsC4236-040 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Cometic |
|---|---|
| Notes | B Series engines. Non-VTEC® blocks with VTEC heads. |
| Quantity | Sold individually. |
| Bore (mm) | 81.500mm |
| Lock Wire | No |
| Part Type | Head Gaskets |
| Bore (in.) | 3.209 in. |
| Product Line | Cometic MLS Head Gaskets |
| Gasket Material | Multi-layer stainless steel |
| Compressed Volume (cc) | 5.301cc |
| Compressed Thickness (in.) | 0.040 in. |
| Manufacturer's Part Number | C4236-040 |
