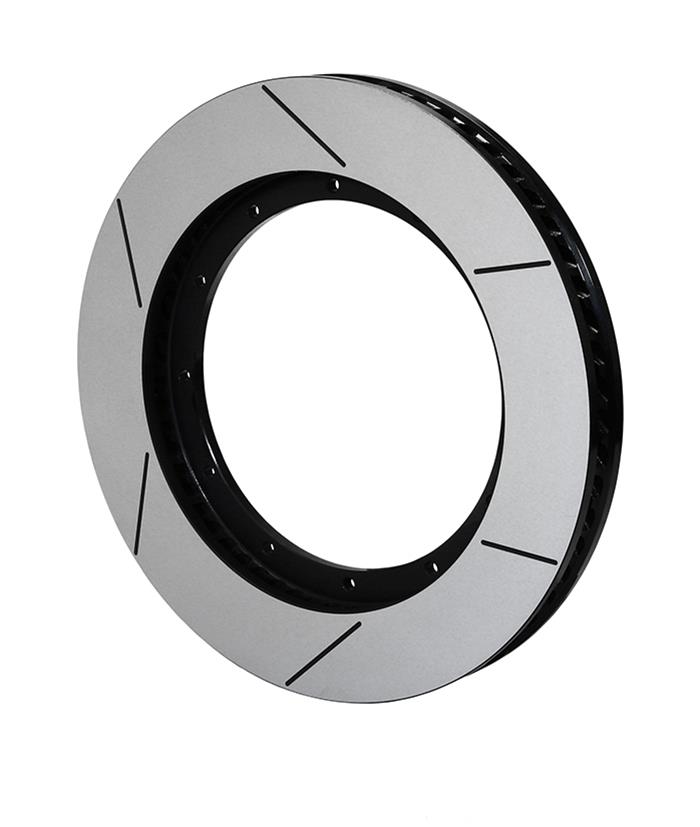

Wilwood GT Series Curved Vane Rotors 160-13785-GTB
Wilwood GT Series Curved Vane Rotors 160-13785-GTB
42 in stock
Couldn't load pickup availability
Product Description
Wilwood's GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Wilwood GT Series curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy-wall rotors are the keys to preventing heat-fade—and realizing a long service life from the rotors and pads. All rotors are cast from premium-grade, long-grain carbon iron for extended wear, thermal stability, and resistance to distortion. Wilwood GT rotors are fully detail-machined to eliminate stress points and unnecessary weight away from the pad sweep face. Each rotor faces and O.D. is precision-turned to less than .001 in. for flatness, parallelism, and runout. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics—and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic-balanced to offer vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme-braking short tracks and road course competition.
Application Summary
Part Type
description
| market_ |
Wilwood''s GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. |
|---|---|
| product_ |
ROTOR1500-150CR903-000ZJCXXXXR |
| product_ |
ROTOR1500-150CR903-000ZJCXXXXR 12x9.75,60 CVANE,GT,BLACK,SPEC-37 |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood GT Series Curved Vane Rotors 160-13785-GTB |
| brand | Wilwood Disc Brakes |
| price | 601.5 |
| blurb | Brake Rotor, GT Series, Slotted, Carbon Iron, 15 in. O.D., Passenger Side, Universal, Each |
| title | Wilwood GT Series Curved Vane Rotors |
| description | Wilwood GT Series curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy-wall rotors are the keys to preventing heat-fade—and realizing a long service life from the rotors and pads. All rotors are cast from premium-grade, long-grain carbon iron for extended wear, thermal stability, and resistance to distortion. Wilwood GT rotors are fully detail-machined to eliminate stress points and unnecessary weight away from the pad sweep face. Each rotor faces and O.D. is precision-turned to less than .001 in. for flatness, parallelism, and runout. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics—and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic-balanced to offer vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme-braking short tracks and road course competition. |
item_row
| handle | WIL-160-13785-GTB |
|---|---|
| item_ |
139972 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/4524d00db43f8049e493a119aef67cb9.JPG |
| item_ |
160-13785-GTB |
| item_ |
Wilwood Rotor-GT60 SPC-37-RH-BLK 15.00 x 1.50 - 12 on 9.75in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545076448 |
| item_ |
601.50 |
| item_ |
649.62 |
| t14_ |
0 |
| mfr_ |
3 |
| dim_ |
27.80 |
| dim_ |
19.10 |
| dim_ |
17.90 |
| dim_ |
2.50 |
| shipping_ |
14.95 |
| item_ |
wil160-13785-GTB |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Features 12 x 9.75 in. rotor bolt circle. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Slotted surface |
| Product Line | Wilwood GT Series Curved Vane Rotors |
| Rotor Finish | Black E-Coat |
| Rotor Material | Iron |
| Rotor Construction | Vented |
| Intended for Street Use | Yes |
| Nominal Thickness (in.) | 1.500 in. |
| Manufacturer's Part Number | 160-13785-GTB |
| For Use with Stock Calipers | No |
| Rotor Outside Diameter (in.) | 15.00 in. |
| Brake Rotor Bolt Pattern (mm) | 12 x 247.65mm |
| Brake Rotor Bolt Pattern (in.) | 12 x 9.75 in. |
