Product Description

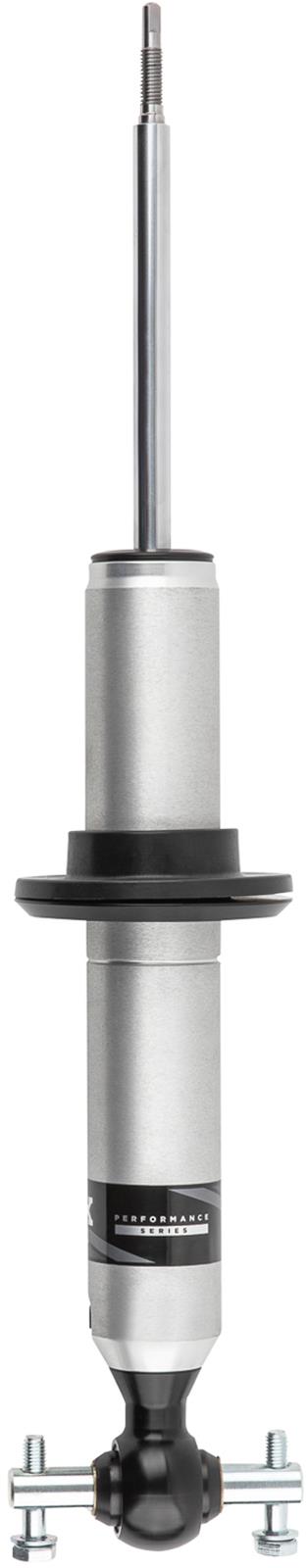

FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Fox Racing Shox 2.0 Performance Series snap ring coilover IFP shocks are a bolt-on solution loaded with a long list of features that set them apart. They're engineered with a new custom-molded spring seat--which allows you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. Inside each shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil, allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0, 1, or 2 in. of lift. Fox Racing Shox 2.0 Performance Series snap ring coilover IFP shocks are easy to install and provide comfortable on-road ride with predictable off-road handling--even in the toughest conditions. Order the model recommended for your vehicle. Additional product details: * 2.0 in. impact-extruded and CNC-machined 6061 T-6 aluminum one-piece body * Clear anodized body for a durable, rust-resistant finish * Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen * Black anodized, CNC-machined 6061 T-6 billet aluminum components * 5/8 in. hard chrome plated heat-treated alloy steel shaft * Race-developed high-flow piston * Application-specific valving to maximize performance * Redundant sealing pack system main seal, wiper seal, scraper seal * JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Large diameter, heavy-duty spherical bearing * Spring is not included
Extended Description
- Application specific valving to maximize performance.
Application Summary
Chevy 1500: 2014-2018
Fitment
Fitment
Part Type
Shock Absorber
description
aaia_ |
Shock Absorber |
---|---|
application_ |
Chevy 1500: 2014-2018 |
label_ |
14-18 GM 1500, Front C/O, Snap Ring, PS, 2.0, IFP, 3.8”, 0-2” Lift |
market_ |
FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. |
product_ |
Application specific valving to maximize performance. |
product_ |
FOX 2.0 PERFORMANCE SERIES SNAP RING CO |
product_ |
PERFORMANCE SERIES 2.0 SNAP RING COIL-OVER IFP SHOCK (SPRING NOT INCL) |
product_ |
2.0 Coil-Over Shock |
s_item
department | Chassis & Suspension |
---|---|
section | Suspension Components |
name | Fox Racing Shox 2.0 Performance Series Snap Ring Coilover IFP Shocks 985-62-002 |
brand | Fox Shox |
price | 299.95 |
blurb | Coilover Shocks, Front, Performance Series 2.0 Coil-Over Snap Ring IFP Shock, Chevy/GMC, 0 in.-2.0 in. Lift, Each |
title | Fox Racing Shox 2.0 Performance Series Snap Ring Coilover IFP Shocks |
description | Fox Racing Shox 2.0 Performance Series snap ring coilover IFP shocks are a bolt-on solution loaded with a long list of features that set them apart. They're engineered with a new custom-molded spring seat--which allows you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. Inside each shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil, allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0, 1, or 2 in. of lift. Fox Racing Shox 2.0 Performance Series snap ring coilover IFP shocks are easy to install and provide comfortable on-road ride with predictable off-road handling--even in the toughest conditions. Order the model recommended for your vehicle. Additional product details: * 2.0 in. impact-extruded and CNC-machined 6061 T-6 aluminum one-piece body * Clear anodized body for a durable, rust-resistant finish * Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen * Black anodized, CNC-machined 6061 T-6 billet aluminum components * 5/8 in. hard chrome plated heat-treated alloy steel shaft * Race-developed high-flow piston * Application-specific valving to maximize performance * Redundant sealing pack system main seal, wiper seal, scraper seal * JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Large diameter, heavy-duty spherical bearing * Spring is not included |
item_row
handle | FOX-985-62-002 |
---|---|
item_ |
412430 |
brand_ |
273 |
brand_ |
FOX |
item_ |
https://d32vzsop7y1h3k.cloudfront.net/30b4c5fdc9c4c8c843c2e6f79d734fd9.JPG |
item_ |
985-62-002 |
item_ |
Fox 14-18 GM 1500 2.0 Performance Series 3.8in IFP Front Coilover Shock / 0-2in Lift |
item_ |
Springs & Coils |
item_ |
Coilovers |
item_ |
00711745603073 |
item_ |
299.95 |
item_ |
299.95 |
t14_ |
14 |
mfr_ |
|
dim_ |
6.60 |
dim_ |
34.10 |
dim_ |
5.40 |
dim_ |
2.90 |
shipping_ |
14.83 |
item_ |
fox985-62-002 |
taxonomy_ |
5383 |
collection_ |
273964728362 |
collection_ |
Springs & Coils |
status | Active |
item_ |
1 |
item_ |
Suspension |
productTaxonomy | 5383 |
Overview
Brand | Fox Shox |
---|---|
Notes | Reuses stock mounting hardware. |
Quantity | Sold individually. |
Part Type | Coilover Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Stock |
Product Line | Fox Racing Shox 2.0 Performance Series Snap Ring Coilover IFP Shocks |
Bushing Material | Spherical bearing |
Hardware Included | No |
Shock Body Finish | Silver anodized |
Adjustable Valving | No |
Body Diameter (in.) | 2.000 |
Coilover Shock Type | Non-adjustable |
Shock Body Material | Aluminum |
Extended Length (in.) | 20.92 |
Collapsed Length (in.) | 16.90 |
Coilover Springs Included | No |
Manufacturer's Part Number | 985-62-002 |
Suspension Height Adjustment | 0.0-2.0 in. raised |
Adjustable Mounting Bracket Included | No |
